Just Ship It!
Building Electronic and CD software distributions for Mac OS X
©2002 Andrew C. Stone All Rights Reserved

Now that you have written, debugged, beta tested and finished your online documentation for your whizzy new Mac OS X application, it's time to make it available to the world! Back in the old days of Mac OS 9 and earlier, developers had a selection of package making tools, including the almost de facto StuffIt™. For Mac OS X however, there is no need to rely on third party vendors to create your installation packages: Apple has provided some powerful disk image creation utilities that come with the base release of Mac OS X. This article will teach you how to use those tools by hand, give you an example of a totally automated packaging shell script, and go into the finer points, such as including a background image in your distribution folder. These same tools can create your master for CD replication as well.

The Macintosh Way

A quick review of some of the online developer discussion groups will reveal the huge amount of emotion developers have over the right way to distribute software packages. Open source and free ware folks swear by gnutar, but that is a problematic solution because Apple no longer includes gnutar in the base distribution. And, because of legal issues surrounding the GNU project's 'Copyleft', Apple did not build in an unpacking mechanism for the industry standard gnutar ball. So, for now, forget simply packing up your distribution with gnutar czf, although you get the highest level of compression and smallest resulting downloads.

Apple has come up with a great packaging solution, although the resulting downloads are somewhat bulkier - disk images are optimized for decompression speed, not minimum compression size. The emphasis has become on how easy a distribution is to unpack and how to reduce the number of steps a user has to take to get the software installed. If you have visited the iTools site, and peeked into the Mac OS X software download folder, you'll see a bunch of APPNAME.dmg files - "disk image" files. The same technology that Apple pioneered for distributing firmware upgrades, the self-mounting disk image, .smi, has evolved to be a great way for developers to distribute their wares.

The user simply double-clicks the downloaded .dmg file, and the Copy Disk utility launches, and automatically mounts the download as a the disk image. During the mounting, Copy Disk verifies the integrity of the image by matching the checksum with the encoded checksum. The user then sees your distribution folder with your application in it. They can try out your app from the disk image if they want, or they can just copy it to their applications folder. And that is the entire installation process.

Because the OS X bundle architecture encourages developers to place all the related files of an application inside the application wrapper, your application can be anywhere on the user's computer and still function correctly. This is an ideal situation because we should never force users to do anything a certain way, especially not for some arcane technical reason. If your installation requires frameworks that must be installed in a certain location, you should consider either including them inside the appwrapper, or perhaps using scripts that install the software for the user in the correct location. Rule 1 is to make your installation so idiot proof that even adults can use it.

The Tools

You use the command line tools, hdiutil and hdid, to create, mount, eject and compress your disk image. A complete guide to the usage of these programs is included in the online manual pages. Type "man hdiutil" to see all the options. Let's walk over this process. I'll use APPNAME as a standin for whatever your application is called in the following set of instructions.

1. Launch Terminal.app from /Applications/Utilities
2. Become "root", aka super user

sudo -s

then provide an adminstrator password, probably your own login password if you are set up to administer your machine.

You need to be root because you will be creating and mounting disk partitions which requires root access. A user cannot sudo to root if they are not a member of the admin group. To allow a user to become an administrator, choose the "Users" module from System Preference's "Show All" pane. Select the user, and click "Edit User". Make sure that the "Allow user to administer this machine" switch is checked, and click OK.

By default, Mac OS X ships without a root account for security reasons. The traditional way of becoming substitute user, su, will fail. To add a root user, launch NetInfoManager from /Applications/Utilities. Choose Domain->Security->Authenticate..., and provide the admin password for your computer. Choose Domain->Security->Enable Root User. You will be asked to provide a non-trivial password, don't forget it!


3. Change directory to where you want to build your disk image - preferabbly a disk with a lot of free space!

    cd /Volumes/BIG/distribution

4. Create the scratch, uncompressed disk image to which you will copy your application. You should be liberal with the size you allocate with the
-megabytes flag. Having too much extra free space will not affect the final compressed size, but having too little will annoy you when you cannot quite copy all of your application onto the image. Doubling the size that your application requires seems to always work. The -layout flag can be NONE for net-distributed application, but you must use the SPUD (Single Partition UDIF) option for a CD-R master. If you are planning on using the same image for Net distribution as CD distribution, then use SPUD here. The -zeroImage tells hdiutil to write zeros to all sectors in the image file, which seems like a good idea to me.

hdiutil create 'APPNAME-scratch.dmg' -megabytes 10 -layout NONE -zeroImage

5. Alert the operating system of the existence of this new disk using hdid - but don't mount the disk in Finder.

hdid APPNAME-scratch.dmg -nomount

After entering this command, the system will reply with the allocated device now connected to the disk image:

/dev/disk1

You'll now use this information in the next step when you initialize the disk image. It's always of the fom
/dev/disk<N>, starting with 1.

6. Create an HFS file system with the name you want Finder to display, using the standard 4K blocksize, -b 4096. If you used -layout NONE above:

newfs_hfs -v APPNAME -w -b 4096 /dev/disk1


If you used -layout SPUD above, you need to initialize the second partition which contains the actual Apple_HFS disk, since the first one has the partition map on it:

newfs_hfs -v APPNAME -w -b 4096 /dev/disk1s2


7. Eject the image, again replacing disk1 with whatever was returned in step 5. above.

hdiutil eject disk1

8. Now, do a complete mount of the disk so that it appears in Finder:

hdid APPNAME-scratch.dmg
->/dev/disk1

At this point, the disk image appears as the icon of a removable drive entitled the name you gave to the -v option in step 6. Now, copy your application and readme files to the new disk. Set the permissions as needed - later in this article, you'll learn how to change the folder's background image and set custom folder icons.

9. Eject the disk

hdiutil eject disk1

NOTE: If disk won't eject because "its busy", you may have to logout and login or even reboot.


10. Make the compressed, net distributable, disk image:

hdiutil convert 'APPNAME-scratch.dmg' -format UDCO -o 'APPNAME-2001-04-06'

The -format option is UDCO (UDIF compressed image) for net distributions, and UDTO (DVD/CD-R master image) for your CD master image. The correct file extension will be added by hdiutil. I think it is wise to include a date in the name of your distribution, so that users can quickly and correctly tell whether they need to download a newer version or not.


Automating The Process

Ken Case, cofounder of OmniGroup, www.OmniGroup.com, created PackageApplication. This handy script not only creates the diskimage, but preprocesses your application to remove extraneous files and symbols, makes a copy of the release, installs frameworks inside of the application, copies the app to the image, compresses the image, and creates an equivalent tarball for a more traditional (and somewhat smaller) UNIX distribution. This is a zsh script, so save it to PackageApplication and make the appropriate changes to PUBLIC path, and then make the file executable:

chmod 755 PackageApplication

Now, you can package an application with, e.g.:

sudo -u root PackageApplication APPNAME

Sudo allows you to execute commands as another user - you are prompted for a password - provide your own. See man sudo for more information on this handy utility.

Here's the script:

#!/bin/zsh -f
#
# Copyright 2000-2001 Omni Development, Inc. All rights reserved.
#
# $Header: /Network/Source/CVS/OmniGroup/Scripts/PackageApplication,v 1.27 2001/03/14 20:19:28 kc Exp $

PUBLIC=/Users/Shared

APPNAME=$1
if [ "$APPNAME" = "" ]; then
    echo "Usage: $0 app-name"
    exit 1
fi

if [ "$SUDO_USER" = "" ]; then
    SUDO_USER = "$USER"
fi
INSTALLEDPRODUCTS=$PUBLIC/$SUDO_USER/InstalledProducts
PACKAGEDIR=$PUBLIC/$SUDO_USER/Release/$APPNAME

cd /tmp

echo "Copying files from $INSTALLEDPRODUCTS to $PACKAGEDIR
"
echo "    (Note: this assumes that all of $INSTALLEDPRODUCTS
    is needed for $APPNAME. If not, remove and rebuild.)
"
(cd $INSTALLEDPRODUCTS; chmod -R u+w .; tar cf - .) | (rm -rf $PACKAGEDIR; mkdir -p $PACKAGEDIR ; cd $PACKAGEDIR; tar xpf - |& egrep -v 'tar: Unable to set file uid/gid of .* <No such file or directory>')

cd $PACKAGEDIR

echo "Cleaning up release"
chmod -R u+w,go-w,a+rX .
chown -R root.admin . 2>/dev/null
# Get rid of those CVS leftovers...
find . -name CVS -type d -exec rm -rf {} \; -prune
find . -name '.#*' -type f -exec rm {} \; -prune
# Users don't need framework documentation and headers, and developers can get those by downloading them separately
find . -name '*.minx' -exec rm {} \; -prune
find . -name 'Documentation' -exec rm -rf {} \; -prune
find . -name 'Headers' -exec rm -rf {} \; -prune
find . -name 'PrivateHeaders' -exec rm -rf {} \; -prune

echo "Stripping debugger symbol table entries from Mach-O files"
find . -type f -print | xargs file | grep Mach-O | awk -F: '{print $1}' | while read file
do
    echo " $file"
    strip -S $file
    chmod a+x $file
done

if [ "$APPNAME" = "OmniWeb" ]; then
    echo "Moving plugins into $APPNAME plugins"
    mv *.plugin $APPNAME.app/Contents/PlugIns
fi

echo "Moving frameworks into $APPNAME frameworks"
mkdir $APPNAME.app/Contents/Frameworks
mv *.framework $APPNAME.app/Contents/Frameworks

if [ -d OmniGroupCrashCatcher.app ]; then
    echo "Moving OmniGroupCrashCatcher into $APPNAME resources"
    mv OmniGroupCrashCatcher.app $APPNAME.app/Contents/Resources
fi

echo "Setting up launcher"
mv $APPNAME.app/Contents/MacOS/{,.}$APPNAME
mv Launcher $APPNAME.app/Contents/MacOS/$APPNAME

echo "Total size of $PWD"
du -s *

echo "Building tar file"
PACKAGEDATE=`date "+%Y-%m-%d"`
TARBALL_NAME="$APPNAME-$PACKAGEDATE.tar.gz"
TARBALL="$PUBLIC/$TARBALL_NAME"
tar czf $TARBALL $APPNAME.app

echo "Building Disk Copy image"

LABELNAME="$APPNAME-$PACKAGEDATE"
SCRATCHIMAGE="$PUBLIC/${LABELNAME} Temp-$$.dmg"
DISKCOPYIMAGE="$TARBALL:r:r.dmg"

# Create the image
echo " Creating scratch image..."
rm -f $SCRATCHIMAGE
hdiutil create $SCRATCHIMAGE -megabytes 10 -layout NONE -zeroImage

# Create a /dev/disk device from the image
drive=`hdid -nomount $SCRATCHIMAGE`

# Create a new filesystem on the disk device
newfs_hfs -v "${APPNAME}" -b 4096 /dev/r${drive:t}

# Remount the disk
echo " Image formatted, ejecting ${drive}..."
hdiutil eject ${drive}

echo " Mounting $SCRATCHIMAGE..."
drive=`hdid $SCRATCHIMAGE`

echo " Searching for ${drive}..."
while [ "$MOUNTPOINT" = "" ]
do
    MOUNTPOINT=`df -l | grep $drive | awk '{print $6}'`
done
echo " Found $drive at $MOUNTPOINT"

# Unpack the tarball into the mounted filesystem
echo " Copying application..."
(cd $MOUNTPOINT && gnutar xzpf $TARBALL)

# Eject the disk
echo " Ejecting..."
hdiutil eject ${drive}

# Convert the image to a UDIF compressed image
echo " Compressing..."
hdiutil convert -format UDCO $SCRATCHIMAGE -o ${DISKCOPYIMAGE:r}
gzip -9 < $DISKCOPYIMAGE > $DISKCOPYIMAGE.gz

# Remove the temporary image
echo " Removing scratch image"
rm -f $SCRATCHIMAGE

#
# All done! List the resulting packages to the user.
#
ls -lg $TARBALL $DISKCOPYIMAGE $DISKCOPYIMAGE.gz


Getting Fancy

The automated process is great if you are happy with a standard folder with your application in it. You can use the utility
ditto to copy files that have resource forks with them - or you can just drag and drop them onto the disk image. Since Finder lets you associate images with folders, let's take advantage! I have not yet figured out how to automate the process of adding a background folder image - because the image MUST point to within the new file hierarchy on your disk image - and this has to be done with Finder. If you preset it on a folder which you then copy to your disk, the copied folder will point back to the original image, which will not be on the end user's disk!

The Finder stores information about a folder in a file named
.DS_Store - normally you cannot see files that begin with a '.'. Use the -a option to ls to see this file:

ls -la
-rw-rw-rw- 1 andrew admin 22604 Mar 26 17:28 .DS_Store

To set the background image of a folder:

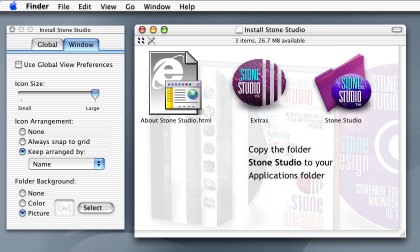

1. In Finder, select the folder, and set the view to Icon mode
2. Choose View -> Show View Options... to bring up the View Options window.
3. Select the "Window" pane. You must have the Finder window in "Icon" mode to access this feature.
4. Uncheck the "Use Global View Preferences" switch
5. Select the "Picture" option, and click "Select..."
6. Navigate to an image included within your new disk image's file hierarchy and click "Choose"

For a professional touch, include an instructive image in the top level folder


You can also set a custom icon for any folder - these do copy fine via Finder or
ditto, since they are stored in the folder. Our artist created them in Mac OS 9 with IconFactory, a plugin for PhotoShop http://www.iconfactory.com. In Mac OS X, you can copy/paste folder icons like this:

1. In Finder, select the folder which has the icon you like
2. Choose File -> Show Info
3. Click on the icon in the upper left hand corner, a box will show that it is selected
4. Choose Edit -> Copy
5. Navigate to the destination folder on which you want the icon to appear.
6. Click on the Info window's icon
7. Choose Edit -> Paste

You're Toast

Making a CD master image is very similar to making a net distribution, with a few changes in the creation of the disk partition, in the initializing of the new file system, and in the compression phase (steps 4., 6. and 10. from The Tools above). When we create the disk image, we'll use the SPUD layout and make it large enough to hold all those quicktime movies and demo files!

hdiutil create 'APPNAME-scratch.dmg' -megabytes 160 -layout SPUD -zeroImage

The process continues the same until we initialize the new disk - we want to intialize the second partition:

newfs_hfs -v APPNAME -w -b 4096 /dev/disk1s2

The process continues the same until we get to the very end when we make a raw disk image for use by Toast or other cd recording software:

hdiutil convert 'APPNAME-scratch.dmg' -format UDTO -o 'APPNAME_CD_2000-04-06'

You are ready to burn your golden master and you'll be shipping CDs within days.

Conclusion

The disk image format is a simple and surefire way to distribute your software electronically, and the same tools let you create CD master images.
Thanks to Jim Kateley and Eric Peyton of Apple Computer, Inc., who assisted me in understanding these tools, Byron Han, principle engineer on the DiskImages project, and Ken Case for PackageApplication.

Andrew Stone, CEO of Stone Design, www.stone.com, has been coding in Cocoa as an independent software developer for over 13 years.
